Introduction

Visual enhancement is a staple tool. Universal color codes such as red for urgent, amber for pending and green for available could make your planning more effective. Allow colors to determine a task’s status or importance, or simply use colors for differentiation. Ranging from neon to pastel, there are 40 distinct colors to choose from. It is within your control to assign colors to project parameters for a more organized and structured planning environment.

Must-know about this feature

Before using conditional coloring, color schemes must be set.

Color taskbars using task colors

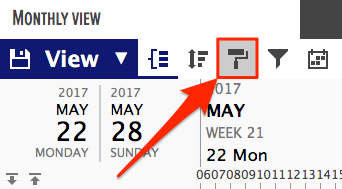

  1. Click on the coloring icon in the view panel
  2. A menu will open.

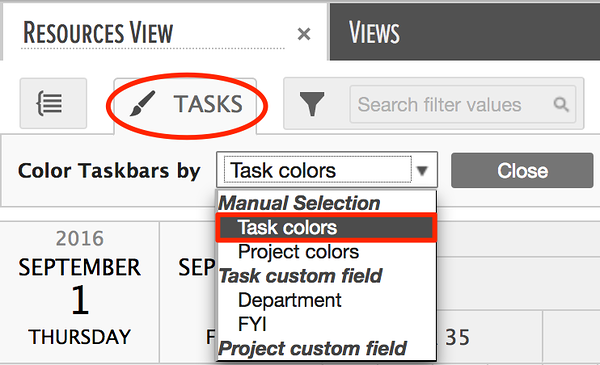

  3. Select 'Task colors' from the drop-down menu
  4. The color of the Gantt charts will change accordingly in the Gantt chart area.

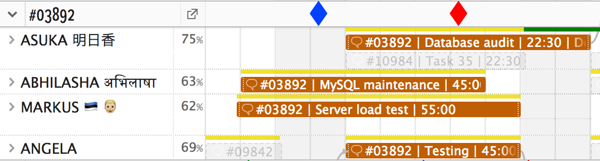

    coloring gantt charts using task colors in the gantt chart area
    Make sure you have selected colors for your tasks before doing this. The default color for tasks is blue.

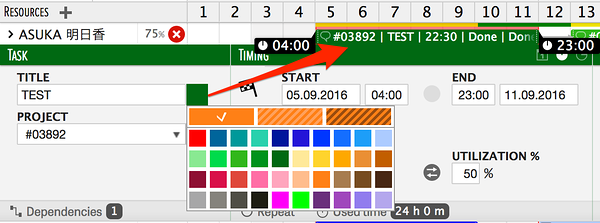

    choosing colors for taskbars in the task dialog

Color taskbars using project colors

  1. Click on the coloring icon in the view panel
  2. A menu will open.

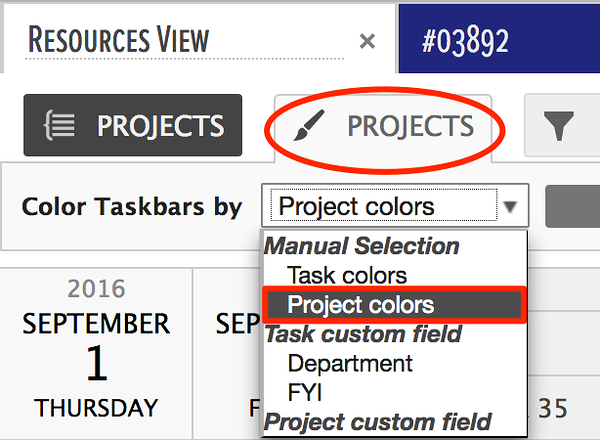

  3. Select 'Project colors' from drop-down menu
  4. The color of the Gantt charts will change accordingly in the Gantt chart area.

    color gantt charts using project colors in the gantt chart area
Use conditional coloring options to create custom views that you can use to get an overview of your project portfolio and tasks from specific viewpoints. You can also color taskbars using task and project custom data fields.
