Sync Google Calendar With Gantt Charts


Introduction

The plans you made on are not restricted to the confines of Ganttic or your desktop computer. You can synchronize the plans you made in Google Calendar to Gantt charts and vice versa. Use this feature to manage your team without making them actually sign in to Ganttic. Keep your staff members updated on the go or make all plans in one place through Google Calendar app.

Must-know about this feature

A new event will appear automatically in Ganttic when you create it in Google Calendar if two-way or Google Calendar > Ganttic direction sync is activated. A new task will appear automatically in Google Calendar when you create it in Ganttic if two-way or Ganttic > Google Calendar direction sync is activated. You can choose the direction of the sync as well as the data you want to bring over for each direction. Sync direction and data options are the following:

If you activate the two-way (Ganttic < > Google Calendar) sync then existing data from Google Calendar will be imported into Ganttic and vice versa. Choosing any of the two one-way options will result in importing existing data from Google Calendar to Ganttic or vice versa. With all sync directions imported existing past data is limited to 1 month. However, this limitation is not applied to future items.

Synchronizing a resource with Google Calendar

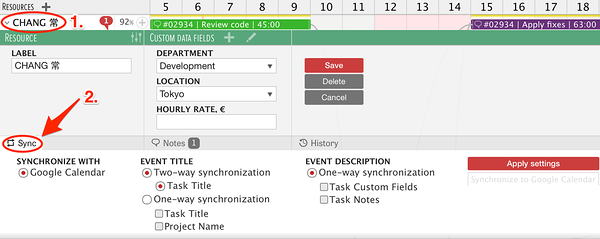

  1. Click on the title of a resource
  2. This opens the resource dialog.
  3. Click on the 'Sync' button below
  4. Select Google Calendar

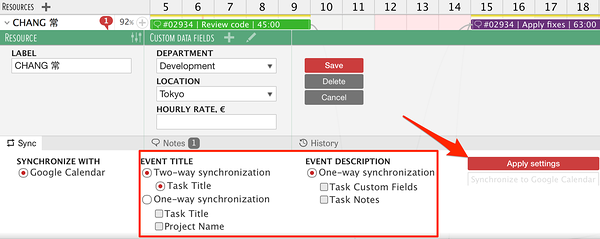

  5. Select sync direction and the data you want to sync
  6. One-way sync is a good idea if you don't want any data coming from Ganttic to Google Calendar. If you are syncing your data with an existing calendar you might want to consider one-way sync since all the exciting events in the calendar will be synced to Ganttic with two-way sync.

    Two-way sync is the one for you if you actually want to do some planning with Google Calendar and create Gantt charts of plans made in GCal. Any changes you make to the plans will be synced to Ganttic for others to see.

  7. Click on 'Apply settings' > 'Start sync'



  8. Click on 'Synchronize to Google Calendar'
  9. This will open a Google Calendar window.
You must have administrator's rights to access these options. Google will ask you to
grant Ganttic rights to access your calendar. Make sure you are logged in to your
Google account.

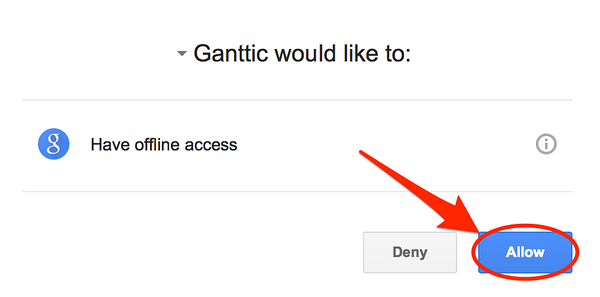

  • Click on 'Allow'
  • This will lead you back to Ganttic.

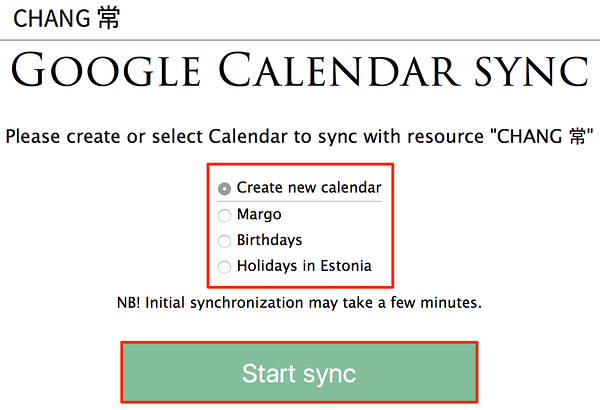

  • Choose an existing calendar or create a new one, and click on "Start sync"
  • After which you will be returned to the planner.
    selecting a calendar for the gantt chart syncing process


  • Synced resources will now appear with a green arrow triangle icon in the chart view
  • You can sync more than one resource to your Google Calendar.


Desynchronizing a resource from Google Calendar


  1. Click on the title of a synchronized resource
  2. This opens the resource dialog.

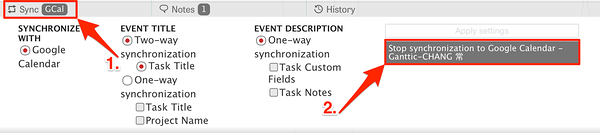

  3. Click on the 'Sync GCal' button in the resource dialog
  4. This will open the options for Google Calendar synchronization

  5. Click on 'Stop synchronization to Google Calendar"
  6. This opens a confirmation dialog.

  • Click on 'OK' to confirm
  • The events that are already synced won't be deleted.
