Speed up your planning process and discover grouping on Ganttic to fully utilize its features. Group your resources by projects (fixed groupings) or by resource parameter values (custom groupings). Grouping your resources helps you to have a quick overview of projects, locations, department or any other custom category.

Must-know about this feature

Resource groupings are created using resource's list type custom data fields.

Add resource grouping

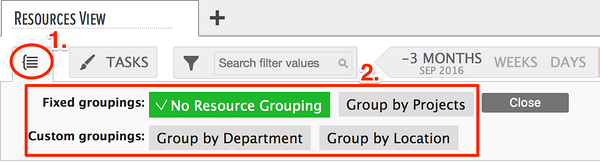

  1. Open grouping section on the top left of view panel
  2. A list of grouping options will appear.

    no resource grouping setting

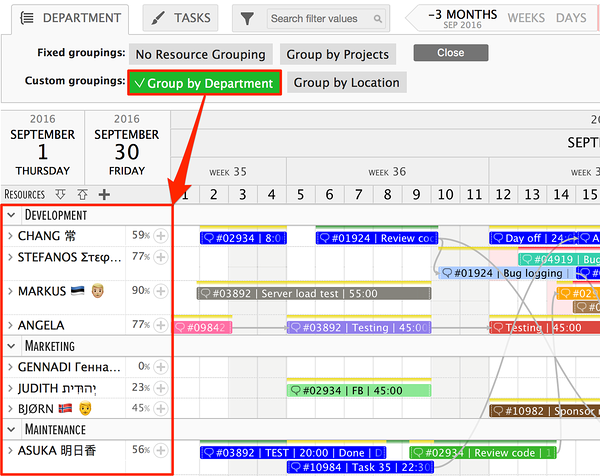

  3. Choose the desired grouping option
  4. You can choose from fixed and resource custom data field based groupings.
  5. Apply desired the option
  6. Your resources will be grouped accordingly.

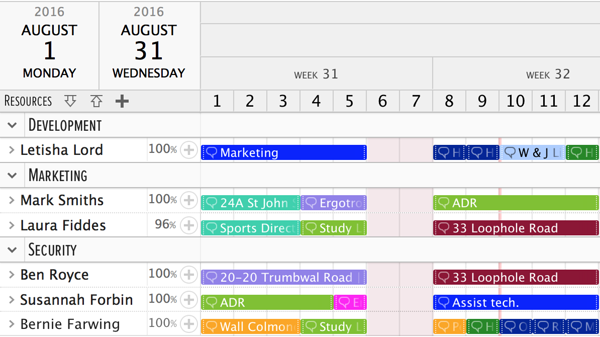

resources grouped by department
You can combine different filtering and grouping options on the go or save them to the view permanently. If you don't save the options you have made, they will be canceled with a reload.

save the desired resource grouping to the view

Rearrange resource groups' order

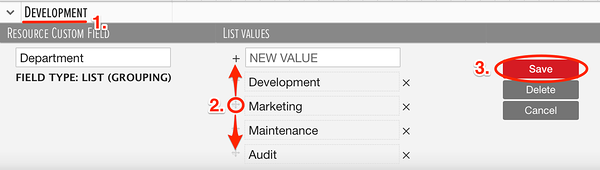

  1. Click on the title of a resource group
  2. This will open the pop-up dialog.
  3. Click on '=' symbol beside resource group's title
  4. Drag and release the data labels to the desired order.
  5. Hit 'Save' upon completion
  6. The order of the groups will be changed accordingly.

    Order options of the custom data field to order resource groups
    NB! Make sure you haven't sorted resource groups by 'Title'. It should be 'Custom order'. Otherwise the order of groups are not displayed as expected.
